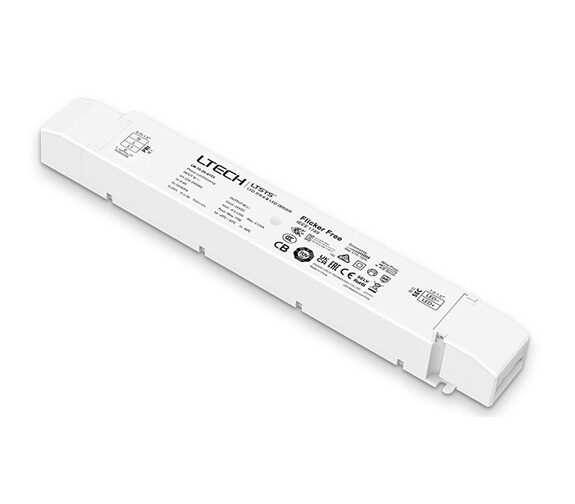

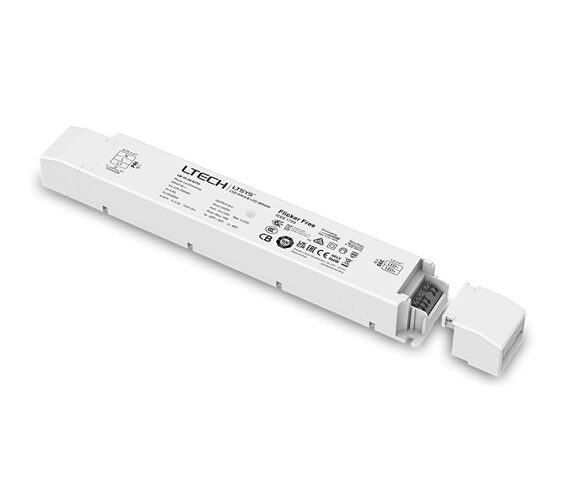

Dimbar Trafo Faseavsnitt/Push DIM 75W/12Vdc

Name: Dimbar Trafo Faseavsnitt/Push DIM 75W/12Vdc | Nordic LED
SKU: LM-75-12-G1T2
Price: 734.00 NOK
Availability: InStock

Opprinnelig pris var: 979.00kr.Nåværende pris er: 734.00kr. 587.20kr eks. mva.

– Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
– Built-in SCM, dimming curve and smoothing time can be customized.
– Dimming range: 0~100%, LED start at 0.1% possible.
– 0-100% flicker-free (IEEE 1789 standard).
– Innovative thermal management technology, intelligent power life protection.
– Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
– 5 years warranty (Rubycon capacitor).

Ingen på lager

✔	100% Norsk nettbutikk	✔	Lynrask levering
✔	Fri Frakt ved kjøp over 2999 kr	✔	Sikker og pålitelig betalingsløsninger
✔	Stort utvalg og lave priser	✔	Kvalitetsprodukter fra ledende produsenter

✔	100% Norsk nettbutikk
✔	Fri Frakt ved kjøp over 2999 kr
✔	Lynrask levering, stort utvalg og lave priser
✔	Sikker og pålitelig betalingsløsninger
✔	Kvalitetsprodukter fra ledende produsenter

Varenummer: LM-75-12-G1T2 Kategorier: Elektromateriell, Trafo / Led-driver Stikkord: Aktuelle tilbud, Favoritt blant elektrikere, Superdeal

Produktdetaljer

Spenning	12V
Output Voltage Range	12Vdc ± 0.5Vdc
Output Current	Max. 6.25A
Output Power	Max. 75W
Output Power Range	0~75W
Strobe Level	High frequency exemption assessment level
Dimming Range	0~100%, dimming depth: Max. 0.1%
Overload Power Limitation	≥102%
Ripple & Noise	≤150mV
PWM Dimming Frequency	≤3600Hz
Dimming Interface	Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
Input Voltage	220-240Vac
Frequency	50/60Hz
Input Current	230Vac≤0.4A
Power factor	PF>0.98/230Vac , at full load
THD	230Vac@THD≤6%, at full load
Efficiency(typ.)	87%
Inrush Current(typ.)	Cold start 30A at 230Vac
Control surge capability	L-N: 2kV
Leakage Current	Max. 0.5mA
Working Temperature	ta: -20 ~ 50°C tc: 85°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Over Load Protection	Shut down the output when current load≥102%, auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Over Voltage Protection	Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
EMC emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard	IEEE 1789
Merke	Nordic Products
Effekt	75W
Kan Dimmes	Ja
Farge	Hvit
Alternativ	LED Driver
Kapslingsgrad	IP20
Dimmetype	Faseavsnitt, Push Dim
