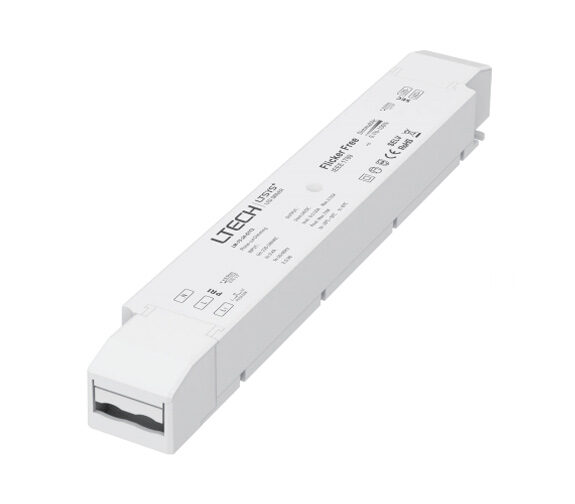

Dimbar Trafo Triac/ELV Push DIM/CCT 75W/24V

Dimbar Trafo Faseavsnitt/Push DIM/CCT 75W/24Vdc For dobbeltfarget stripe (WarmDim)

Name: Dimbar Trafo Faseavsnitt/Push DIM/CCT 75W/24Vdc For dobbeltfarget stripe (WarmDim) | Nordic LED
Brand: Nordic Products
SKU: LM-75-24-G2T2
Price: 599.00 NOK
Availability: InStock

Opprinnelig pris var: 1,149.00kr.Nåværende pris er: 599.00kr. 479.20kr eks. mva.

– Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
– Built-in SCM, dimming curve and smoothing time can be customized.
– Dimming range: 0~100%, LED start at 0.1% possible.
– 0-100% flicker-free (IEEE 1789 standard).
– Innovative thermal management technology, intelligent power life protection.
– Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
– 5 years warranty (Rubycon capacitor).

Varenummer: LM-75-24-G2T2

Kategorier: Elektromateriell, Trafo / Led-driver

Merke: Nordic Products

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikre og pålitelige betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Beskrivelse

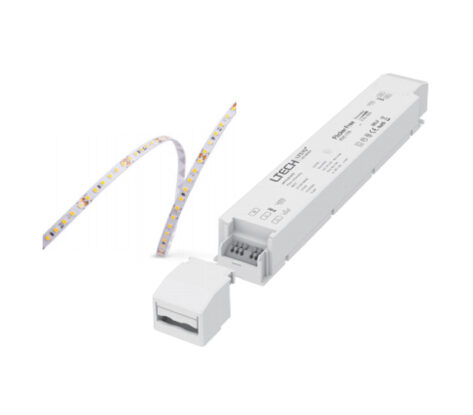

Denne driver er spesiellt anpasset dobbelfarget led-striper, dimmes med standard vriddimmer (faseavsnitt) eller impulsbryter. Drivern justerer mellom varm og kald farge på stripen når du dimmer kursen, ved full styrke får du full effekt på kaldhvit, når du dimmer til det laveste får du varmt lys ut fra stripen.

Perfekt kombinasjon til warmdim downlights.

Produktet passer til følgende striper.

– 24V LED Strips Warmdim 1800-4000k IP20 14W/m 280LED/m 5m rull
– 24V LED Strips Warmdim 1800-4000k IP68 14W/m 280LED/m 5m rull
– 24V LED Strips Varmhvit+Kaldhvit IP20 18W/m 120LED/m 5m rull
– 24V LED Strips Varmhvit+Kaldhvit IP66 18W/m 120LED/m 5m rull

Spenning	24V
Output Voltage Range	24Vdc ± 0.5Vdc 2 channel
Output Current	Max. 3.125A
Output Power	Max. 75W
Output Power Range	0~75W
Strobe Level	High frequency exemption assessment level
Dimming Range	0~100%, dimming depth: Max. 0.1%
Overload Power Limitation	≥102%
Ripple & Noise	≤150mV
PWM Dimming Frequency	≤3600Hz
Dimming Interface	Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.
Input Voltage	220-240Vac
Frequency	50/60Hz
Input Current	230Vac≤0.4A
Power factor	PF>0.98/230Vac , at full load
THD	230Vac@THD≤6%, at full load
Efficiency(typ.)	87%
Inrush Current(typ.)	Cold start 30A at 230Vac
Control surge capability	L-N: 2kV
Leakage Current	Max. 0.5mA
Working Temperature	ta: -20 ~ 50°C tc: 85°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Over Load Protection	Shut down the output when current load≥102%, auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Over Voltage Protection	Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
EMC emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe Test Standard	IEEE 1789
Dimension	293×43×30mm(L×W×H)
Packing	296×44×33mm(L×W×H)
Weight(G.W.)	350g±10g
Effekt	75W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Dimmetype	Faseavsnitt, Push Dim
Alternativ	LED Driver
