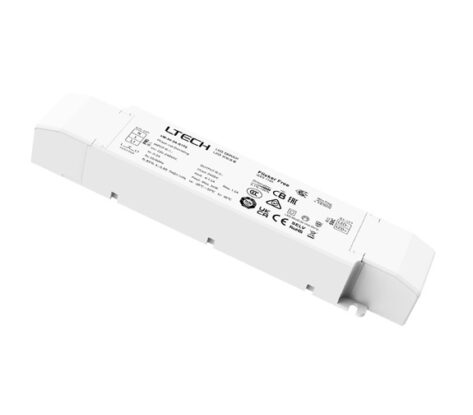

Dimbar Trafo Faseavsnitt/Push DIM 36W/24Vdc

Name: Dimbar Trafo Faseavsnitt/Push DIM 36W/24Vdc | Nordic LED
Brand: Nordic Products
SKU: LM-36-24-G1T2
Price: 411.00 NOK
Availability: InStock

Opprinnelig pris var: 549.00kr.Nåværende pris er: 411.00kr. 328.80kr eks. mva.

– Support Triac leading edge, ELV trailing edge and push DIM dimming.
– Built-in single chip, dimming curve and smoothing time can be customized.
– Dimming range: 0~100%, LED start at 0.1% possible.
– Over load / Over-heat / Short circuit protection, recover automatically.
– Class 2 power supply. Full protective plastic housing.
– Compliant with Safety Extra Low Voltage standard.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

Varenummer: LM-36-24-G1T2

Kategorier: Elektromateriell, Trafo / Led-driver

Merke: Nordic Products

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikre og pålitelige betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Spenning	24V
Output Voltage Range	24Vdc ± 0.5Vdc
Output Current	Max. 1.5A
Output Power	Max. 36W
Output Power Range	0~36W
Dimming Range	0~100%, dimming depth: Max. 0.1%
Overload Power Limitation	≥102%
Ripple & Noise	≤120mV
PWM Frequency	300Hz
Dimming Interface	Triac/ELV, Push DIM
Input Voltage	200-240Vac
Frequency	50/60Hz
Input Current	230Vac≤0.4A
Efficiency(typ.)	87%
Inrush Current(typ.)	Cold start 40A at 230Vac
Anti Surge	L-N:1KV
Leakage Current	<0.5mA/277Vac
Working Temperature	ta: -30 ~ 55°C tc: 70°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C(0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, and the output current will be restored automatically when the temperature comes normal.
Over Load Protection	Power limit when rated power≥102%, auto recovers when the load is reduced.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers after faulty condition is removed.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
Effekt	36W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Alternativ	LED Driver
Dimmetype	Faseavsnitt, Push Dim
Forventet på lager	31 okt - 01 nov
