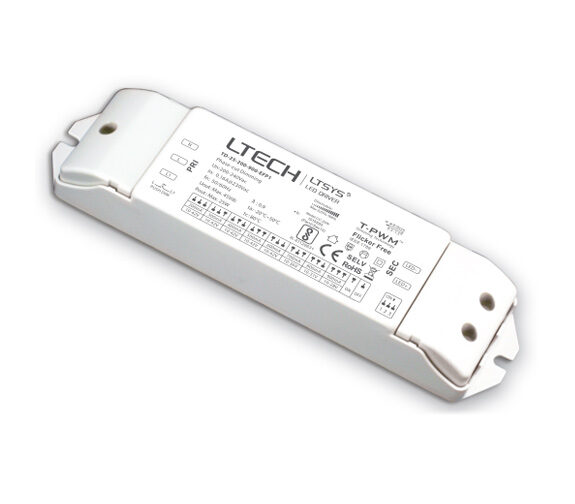

Dimbar Trafo Triac/ELV Push DIM 3-30W 300-900mA 10-42Vdc

Dimbar Trafo Faseavsnitt/Push DIM 3-30W 300-900mA 10-42Vdc

Name: Dimbar Trafo Faseavsnitt/Push DIM 3-30W 300-900mA 10-42Vdc | Nordic LED
Brand: Nordic Products
SKU: TD-30-300-900-EFP1
Price: 999.00 NOK
Availability: InStock

999.00kr 799.20kr eks. mva.

– Support Leading edge (Triac), Trailing edge (ELV) and Push Dimmer.
– Built-in SCM, dimming curve and smoothing time can be customized.
– T-PWM digital dimming, present a perfect visual experience.
– Dimming range: 0~100%, dimming depth: Max. 0.01%.
– Flicker-free (IEEE 1789), achieve the level of exemption assessment.
– Innovative thermal management technology, intelligent power life protection.
– Multi-current & wide voltage, suitable for different power LED.
– Over load / Over-heat / Short circuit protection, recover automatically.
– Class 2 power supply. Full protective plastic housing.
– Compliant with Safety Extra Low Voltage standard.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

Varenummer: TD-30-300-900-EFP1

Kategorier: Elektromateriell, Trafo / Led-driver

Merke: Nordic Products

Vi er etter Forskrift om elektrisk utstyr §21 pliktig til å informere våre forbrukere at installasjons-materiell ment for å kunne inngå i et fast elektrisk anlegg kan kun installeres av en registrert installasjons virksomhet. Unntatt er elektrisk materiell som utelukkende er ment for bruk i faste teleinstallasjoner, og elektrisk materiell som forbruker selv lovlig kan installere.

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikre og pålitelige betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Spenning	10-42V
Max Output Voltage	45Vdc
Output Current	300-900mA
Output Power Range	3W~30W
Fluctuation Level	Exemption assessment level.
Dimming Range	0~100%, dimming depth: Max. 0.01%
LF current ripple(<120Hz)	<2%
Current Accuracy	±5%
Ripple & Noise	≤2V
PWM Frequency	3600Hz
Dimming Interface	Triac/ELV, Push
Input Voltage Range	200-240Vac
Frequency	50/60Hz
Input Current	0.18A@230Vac
Power Factor	PF>0.9/230Vac (full load)
Efficiency(typ.)	85%
Inrush Current(typ.)	Cold start 5A at 230Vac (twidth=76μs measured at 50% Ipeak)
Anti Surge	L-N: 1kV
Leakage Current	<0.25mA/230Vac
Working Temperature	ta: -20°C ~ 50°C tc: 80°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Over Load Protection	Power limit when rated power≥102%, auto recovers.
Over-heat Protection	ntelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
Strobe Test Standard	IEEE 1789
Dimension	175×44×30mm(L×W×H)
Packing	178×48×33mm(L×W×H)
Weight(G.W.)	150g±10g
Effekt	30W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Dimmetype	Faseavsnitt, Push Dim
Alternativ	LED Driver
