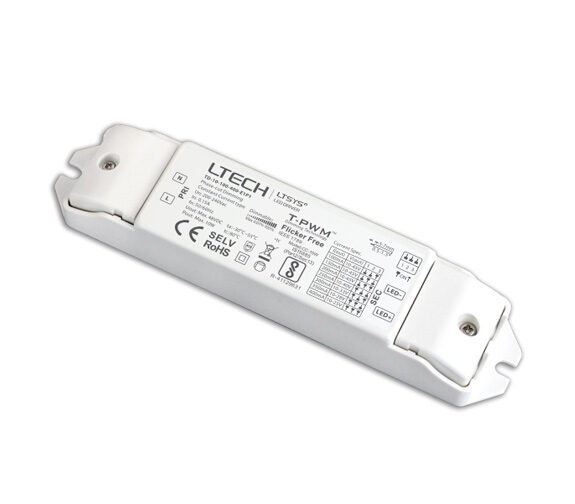

Dimbar Trafo Triac/ELV DIM 10W 100-400mA 10-45Vdc

Name: Dimbar Trafo Triac/ELV DIM 10W 100-400mA 10-45Vdc | Nordic LED
Brand: Nordic Products
SKU: TD-10-100-400-E1P1
Price: 399.00 NOK
Availability: InStock

399.00kr 319.20kr eks. mva.

– Support Triac leading edge, ELV trailing edge phase-cut dimming.
– T-PWM digital dimming, present a perfect visual experience.
– Built-in SCM, dimming curve and smoothing time can be customized.
– Dimming range: 0~100%, LED start dimming from 0.01%.
– Flicker-free (IEEE 1789), achieve the level of exemption assessment.
– Innovative thermal management technology, intelligent power life protection.
– Multi-current & wide voltage, suitable for different power LED.
– Over load / Over-heat / Short circuit protection, recover automatically..
– Class 2 power supply. Full protective plastic housing.
– Compliant with Safety Extra Low Voltage standard.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

Varenummer: TD-10-100-400-E1P1

Kategorier: Trafo / Led-driver, Elektromateriell

Merke: Nordic Products

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikker og pålitelig betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Spenning	10-45V
Max Output Voltage	48Vdc
Output Current	100-400mA
Output Power	Max. 10W
Strobe Level	Exemption assessment level.
Dimming Range	0~100%, LED start at 0.01% possible.
LF current ripple(<120Hz)	<1.5%
Current Accuracy	±5%
Ripple & Noise	≤200mV
PWM Frequency	3600Hz
Dimming Interface	Triac leading edge / ELV trailing edge
Input Voltage Range	200-240Vac
Frequency	50/60Hz
Input Current	0.15A@230Vac
Efficiency	>82%
Inrush Current(typ.)	Cold start 20A at 230Vac
Control Surge Capability	L-N: 1kV
Leakage Current	<0.5mA/230Vac
Working Temperature	ta: -30°C ~ 55°C tc: 80°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Over Load Protection	When O/P voltage exceed its range, O/P current declines, auto recovers.
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C. auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
Strobe Test Standard	IEEE 1789
Dimension	135×30×320mm(L×W×H)
Packing	140×34×23mm(L×W×H)
Weight(G.W.)	80g±10g
Effekt	10W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Alternativ	LED Driver
