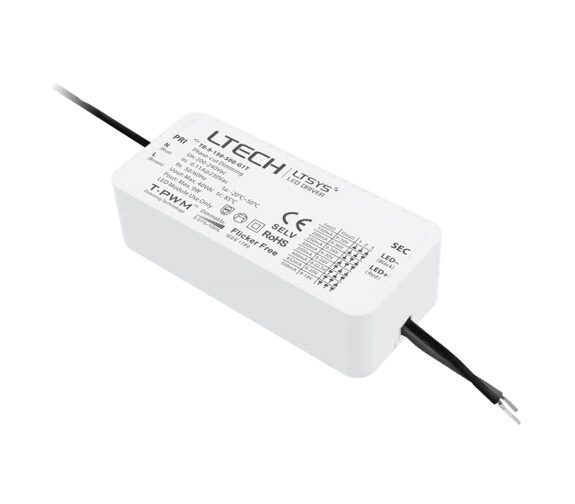

Dimbar Trafo Triac/ELV DIM 1.35-9W 150-500mA 9-36Vdc

Name: Dimbar Trafo Triac/ELV DIM 1.35-9W 150-500mA 9-36Vdc | Nordic LED
Brand: Nordic Products
SKU: TR-9-150-500-G1T
Price: 599.00 NOK
Availability: InStock

599.00kr 479.20kr eks. mva.

– OBS! Varen leveres forinnstilt på 150ma enkel justering med Dip-switch
– Support Triac leading edge, ELV trailing edge phase-cut dimming.
– Super small size, can be built-in the guide rail shooting light.
– T-PWM digital dimming, present a perfect visual experience.
– Dimming range: 0~100%, LED start dimming from Max. 0.01%.
– Flicker-free (IEEE 1789), achieve the level of exemption assessment.
– Innovative thermal management technology, intelligent power life protection .
– Multi-current & wide voltage, suitable for different power LED.
– Over load / Over-heat / Short circuit / Over voltage protection, recover automatically.
– Class 2 power supply. Full protective plastic housing.
– Compliant with Safety Extra Low Voltage standard.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

Varenummer: TR-9-150-500-G1T

Kategorier: Trafo / Led-driver, Elektromateriell

Merke: Nordic Products

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikre og pålitelige betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Beskrivelse

OBS! Varen leveres forinnstilt på 150ma enkel justering med Dip-switch

Spenning	9-36V
Max Output Voltage	40Vdc
Output Current	150-500mA
Output Power Range	1.35W~9W
Fluctuation Level	Exemption assessment level.
Dimming Range	0~100%, dimming depth: Max. 0.01%
PWM Frequency	≤3600z
LF current ripple(<120Hz)	<2%
Current Accuracy	±5%
Dimming Interface	Triac leading edge / ELV trailing edge
Input Voltage Range	200-240Vac
Frequency	50/60Hz
Input Current	0.11A@230Vac
Efficiency(typ.)	80%
Inrush Current(typ.)	Cold start 25A at 230Vac (twidth=240μs measured at 50% Ipeak)
Control Surge Capability	L-N: 1kV
Leakage Current	<0.5mA/230Vac
Working Temperature	ta: -20°C ~ 50°C tc: 85°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
Over Load Protection	Power limit when Max. power loaded≥108%, auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Over Voltage Protection	Protection start if exceed non load voltage value, auto recovers.
Withstand Voltage	I/P-O/P: 3750Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
Strobe Test Standard	IEEE 1789
Dimension	80×35×23mm(L×W×H)
Packing	93×43×27mm(L×W×H)
Weight(G.W.)	75g±10g
Effekt	9W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Alternativ	LED Driver
