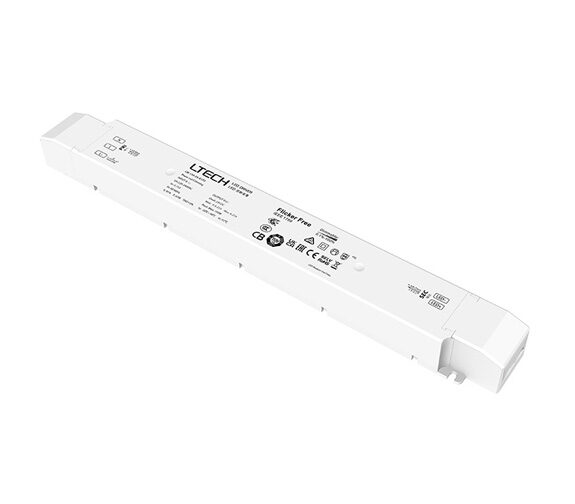

Name: Dimbar Trafo Faseavsnitt/Push DIM 150W/12Vdc
Brand: Nordic Products
SKU: LM-150-12-G1T2
Price: 1019.00 NOK
Availability: InStock

Opprinnelig pris var: 1,359.00kr.Nåværende pris er: 1,019.00kr. 815.20kr eks. mva.

Varenummer: LM-150-12-G1T2

Kategorier: Elektromateriell, Trafo / Led-driver

Merke: Nordic Products

100% Norsk nettbutikk
Fri frakt ved kjøp over 2999 kr
Stort utvalg og lave priser

Lynrask levering
Sikre og pålitelige betalingsløsninger
Kvalitetsprodukter fra ledende produsenter

Beskrivelse

Dimbar Trafo Faseavsnitt/Push DIM 150W/12Vdc

– Support Leading edge (Triac), Trailing edge (ELV) and Push Dimmer.
– Built-in SCM, dimming curve and smoothing time can be customized.
– Dimming range from 0-100%, LED start at 0.1% possible.
– 0~100% flicker-free, achieve the level of high frequency exemption assessment.
– Short circuit / Over-heat / Over load / Over voltage protection, recover automatically.
– Compliant with Safety Extra Low Voltage standard.
– Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.

Spenning	12V
Output Voltage Range	12Vdc ± 0.5Vdc
Output Current	Max. 6.25A
Output Power	Max. 150W
Output Power Range	0~150W
Strobe Level	High frequency exemption assessment level
Dimming Range	0~100%, dimming depth: Max. 0.1%
Overload Power Limitation	≥102%
Ripple & Noise	≤200mV
Dimming Interface	Triac/ELV, Push DIM
Input Voltage	200-240Vac
Frequency	50/60Hz
Input Current	230Vac≤1.4A
Efficiency(typ.)	85%
Inrush Current(typ.)	Cold start 50A at 230Vac
Anti Surge	L-N: 1kV L/N-G: 2kV
Leakage Current	I/P-O/P: <0.5mA/230VacI/P-GND: <0.75mA/230Vac
Working Temperature	ta: -20°C ~ 45°C tc: 90°C
Working Humidity	20 ~ 95%RH, non-condensing
Storage Temp., Humidity	-40°C ~ 80°C, 10~95%RH
Temp. Coefficient	±0.03%/°C (0-50°C)
Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C. auto recovers.
Over Load Protection	Power limit when rated power≥102%, auto recovers.
Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
Over Voltage Protection	Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.
Withstand Voltage	I/P-O/P: 3750VacI/P-GND: 1800Vac
Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
Strobe Test Standard	IEEE 1789
Effekt	150W
Kan Dimmes	Ja
Farge	Hvit
Kapslingsgrad	IP20
Alternativ	LED Driver
Dimmetype	Faseavsnitt, Push Dim
